TP100 - YAI

Overview

Use the TP100 7" screen teach pendant to jog and teach points to MPiec supported robots and mechanisms.

Notes:

Ability to create custom screens is not currently available but will be for subsequent releases.
When the TP100 Teach Pendant is used, the robot system is configured by the Soft Pendant.

Soft Pendant

TemplateWeb

Hardware Status

TP100 - Overview

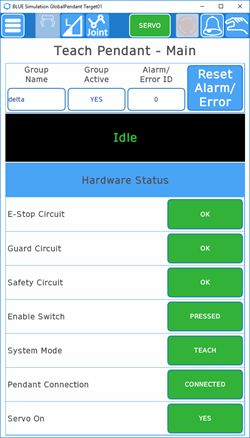

Hardware Status

View system status information
- E-Stop circuit
- Guard circuit
- Safety circuit
- Enable switch
- System mode (i.e. teach or play)
- Pendant (Modbus TCP) Connection
- Servo on state

Note: When the TP100 Teach Pendant is used, the robot system is configured by the Soft Pendant. Download Soft Pendant
