SGM7F Direct Drive
SGM7F Direct Drive
SGM7F-Direct-Drive - YAIMOB
![](https://www.yaskawa.com/documents/20197/1158080/sgm7f-dd-motor-200x150.jpg/d393b9f2-b9f7-4d37-baa2-c536d81f7763?version=1.0&t=1684791536063)
2-35Nm torque, compact size for easy application
Directly connect a load to SGM7F and get backlash-free torsional stiffness in a compact package that makes application easier. An iron core design is coupled with a high resolution 24-bit encoder to achieve highly accurate indexing. A smaller size and low heat generation make SGM7F easier to implement in existing machine designs.
TemplateWeb

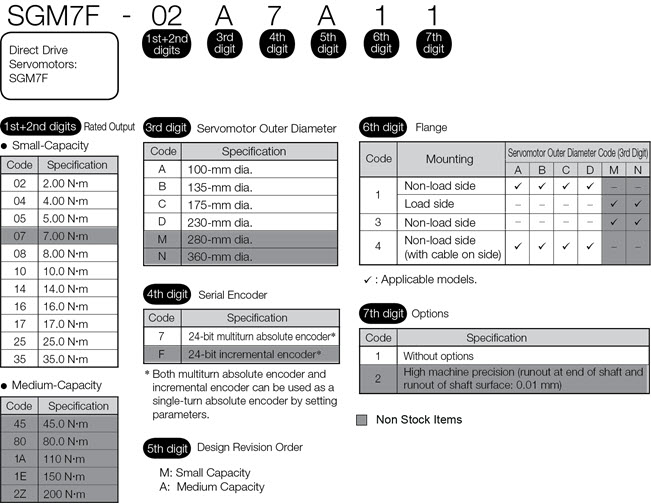

Model Number Key
SGM7F Direct Drive - Overview
![SGM7F Model Key](/documents/20197/950451/sgm7f-model-key-650.jpg/c2715d92-e83c-437e-b67a-ac1040672e65?t=1711114906681)
