SGDV MECHATROLINK-II

SGDV MECHATROLINK-II - YAIMOB

TemplateWeb

Model Number Key

SGDV MECHATROLINK-II - Overview

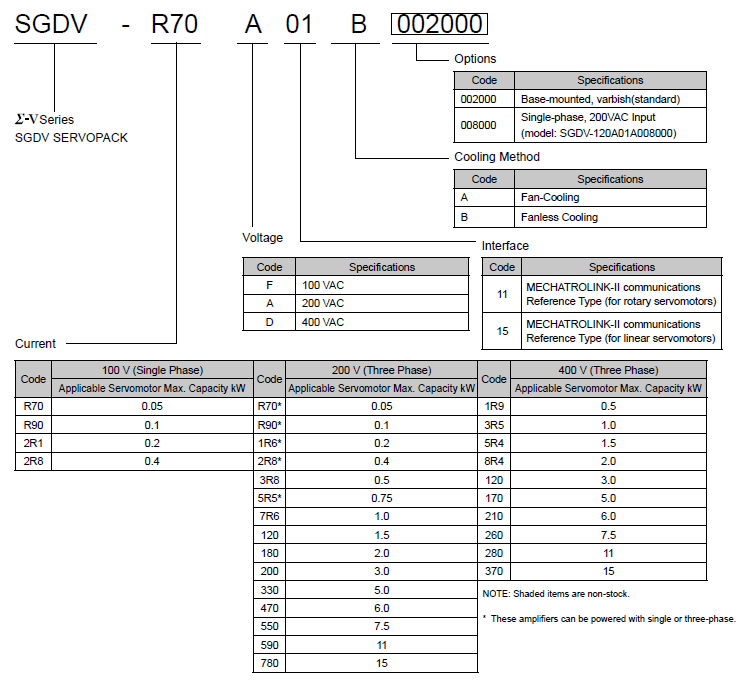

Model Number Key for SGDV Sigma-5 Mechatrolink II

Model numbers are dependent upon the interface selected for the amplifier or whether an option module is required. Select the correct model number designation chart by identifying whether the amplifier interface will be Analog, MECHATROLINK-II, MECHATROLINK-III, if it will require additional options such as EtherCAT, Fully Closed Loop, Indexer, Functional Safety or MP2600iec. Or see the model number designation for SGDV SigmaLogic.
