Model Number Key

Z1000 Configured - Overview

Z1000 Configured Model Keys:

NEMA 1 | NEMA 12 | NEMA 3R
12-Pulse NEMA 1 | 12-Pulse NEMA 3R
18-Pulse NEMA 1 | 18-Pulse NEMA 3R

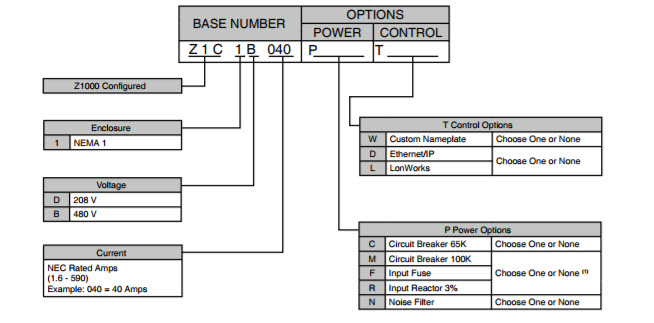

NEMA 1 MODEL KEY:

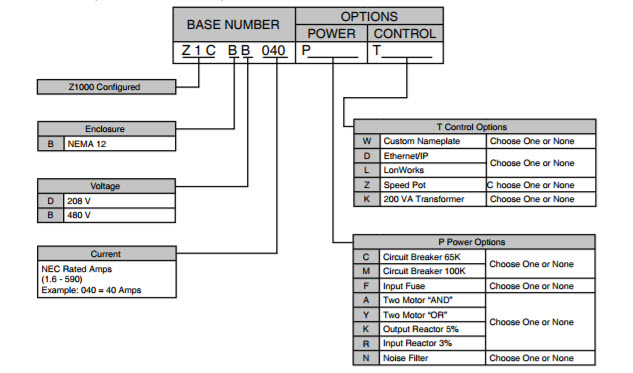

NEMA 12 MODEL KEY:

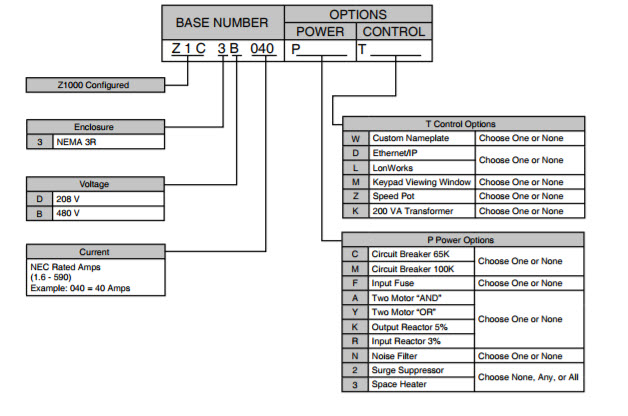

NEMA 3R MODEL KEY:

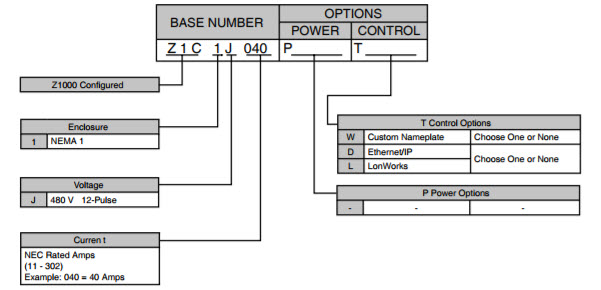

12 Pulse NEMA 1 MODEL KEY:

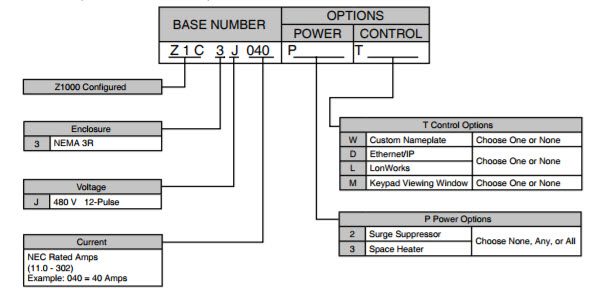

12 Pulse NEMA Type 3R MODEL KEY:


18 Pulse NEMA Type 1 MODEL KEY:

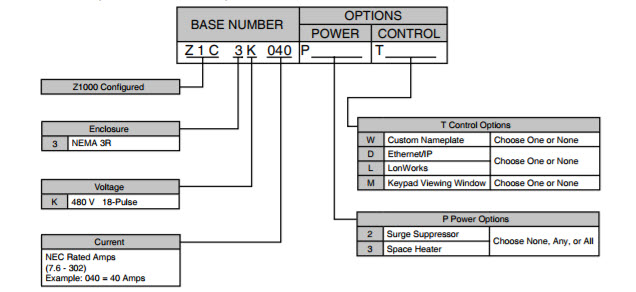

18 Pulse NEMA Type 3R MODEL KEY:
